1.X-ray generator set
- High stability, medium frequency, creating high voltage for X-ray tube at the end of the spectrometer
- Maximum output power: 4 KW
- High voltage: 20 - 60 kV (maximum 60 kV), 1 kV jump step
- Transmitter current: 5 - 170 mA, 1 mA jump step
- Stability and current stability: +/- 0.0005%
- Compensation level for voltage variation: +/- 10%
- Full control by PC for all parameters of high-voltage transmitter
2. X-ray tube
- Using stimulating sources with Rhodium (Rh) or silver (Ag), Molipden (Mo) ... optional
- Output power: 3 kW or 4 kW optional according to usage demand
- Transmitters made from Berrylium with a thickness of 75 micrometers help optimize the transmission line with high intensity
- The stability of extremely high X-ray tube with attenuation of beam intensity less than 0.02% after 12,000 h operation.
3. Detector

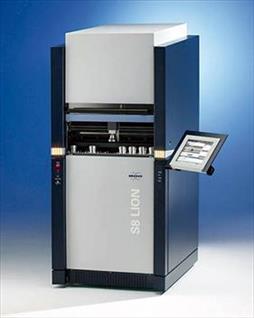

- S8 LION uses up to 16 Detectors for 16 measurement channels. Depending on the need to analyze as many as elements, each element on a measurement channel will have a separate detector. The device uses 02 main detectors including: Proportional Flow (PFC: Proportional Flow Counter) and flashing (SC: Scintillation Counter)
